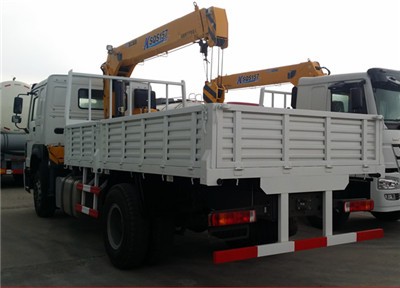

SPECIFICATION FOR CRANE
Max Lifting Capacity5000 kg
Max Lifting Moment12.5 T.M
Max Oil Flow of Hydraulic System32 L/min
Max Pressure of Hydraulic System20 MPa
Rotation AngleAll Rotation
Max.Working radius (m)8.5 m
Supporting LegNO
SPECIFICATION FOR CHASSIS
Dimension(Lx W xH)（mm）8377×2496×3550
Loading Capacity (Ton)16 Ton
Cargo body size (LxWxH) (mm)4950×2300×600 ,Bottom 3 mm, Side 2 mm
Approaching angle/Departure angle（°）23/15
Overhang(front/rear) (mm)1500/2600
Wheel base (mm)4600
Max speed（km/h）102
Curb weight（kg）9980
Engine(Steyr technology, made in China)ModelWD615.87，water-cooled，four strokes，6 cylinders in line with water cooling，turbocharged and inter-cooling, directly injection
Fuel typeDiesel
Power, max（kw/rpm）290HP
EmissionEUROII
Fuel tanker capacity（L）400L aluminum oil tank
TransmissionModelHW19710, 10 speed forward and 2 reverse
Brake systemService brakeDual circuit compressed air brake
Parking brakespring energy, compressed air operating on rear wheels
Steering systemModelZF8118
Front axleHF9
Rear axleHC16
Tire295/80R22.5
Electrical systemBattery2X12V/165Ah

Alternator28V-1500kw


Starter7.5Kw/24V
